Service & Quality controlWe supply detailed drawings and offer whenever necessary.

Overview

Quick Details

Applicable Industries:

Manufacturing Plant

Brand Name:

OEM

ITEM NO:

SYF

Material:

45C Steel

Application:

Mining

Mount Position:

Horizontal Foot Mounted

Warranty:

1-2 Years

Ratio:

8-14

Bearing:

NSK Bearing

Certification:

ISO9001

Material of Housing:

Hardened tooth surface

Colour:

Choose

Packaging & Delivery

Lead Time
:

Quantity(Pieces)	1 – 1	2 – 3	4 – 5	>5
Est. Time(days)	3	5	10	To be negotiated

Online Customization

Product Description

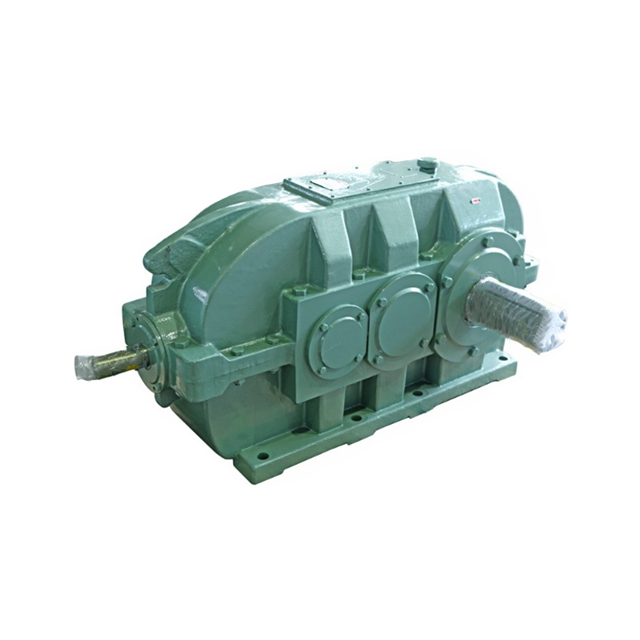

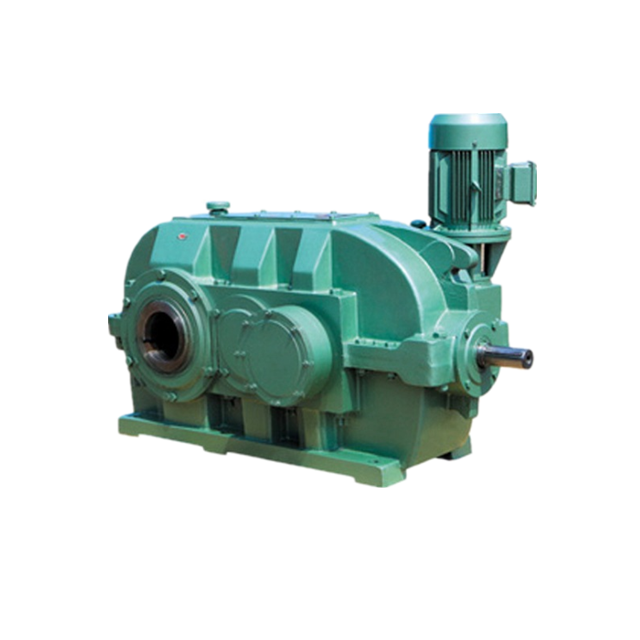

DBY DBZ CONICAL CYLINDRICAL GEARBOX

The DBY, DBZ type hardened tapered cylindrical gearbox produced by national standards JB/T8853-2001.
The input and output of a gear transmission mechanism of vertical layout of the state. Transmission gear is made of high quality alloy steel, carburizing quenching, grinding and other processes, precision grade 6, hardness is HRC60 (58 ~ 62).

DBY DBZ CONICAL CYLINDRICAL GEARBOX DRAWING

DBY CONICAL CYLINDRICAL GEARBOX

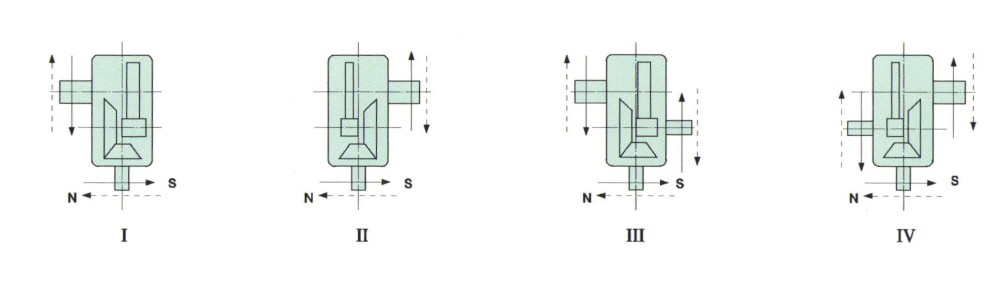

According to the output axis, it can be divided into four types: I, II, III and IV. Type I and II without backstop, Type III and IV with mountable brake (backstop)

Bearing Capacity of DBY Conical Cylindrical Gear Reducer
Environment Condition	Air  velocity	Center distance    a
		160	180	200	224	250	280
		Thermal Power of Reducer without Additional Cooling Device  P G1/KW
Narrow Workshop	≥0.5	32	40	50	61	76	95
Medium-sized, large workshop	≥1.4	45	57	71	85	106	133
Outdoor	3.7	62	77	96	116	144	181

Bearing Capacity of DBY Conical Cylindrical Gear Reducer
Environment Condition	Air  velocity	Center distance    a
			180	200	224	250	280
		Thermal Power of Reducer without Additional Cooling Device  P G1/KW
Narrow Workshop	≥0.5	32	40	50	61	76	95
Medium-sized, large workshop	≥1.4	45	57	71	85	106	133
Outdoor	≥3.7	62	77	96	116	144	181

DBY DBZ CONICAL CYLINDRICAL GEARBOX FEATURES:

● High load-bearing capacity: The load-bearing capacity of hard tooth surface gear processed by carburizing, quenching and grinding is 46 times higher than that of soft tooth surface treated by quenching and tempering, and 23 times higher than that of medium and hard tooth surface.

● Low noise: Because of the high accuracy of processing and installation, the noise is lower than 85dB (A).

●Small size: Because the input shaft and the output shaft are arranged vertically, the areIn our sales program we offer standard and wide-angle PTO drive shafts. Regarding the customers’ needs there are different sizes, lengths and safety elements (clutches) available.a occupied by the driving station of the parallel axis cylindrical gear reducer is reduced by more than 50% compared with th”EPG” brand rotocultivator ploughshares in T.S. total lines produced in our factory have been tested and appraised by the Ministry of Agriculture and have obtained the license of popularizing farm machinery promulgated by the Ministry of Agriculture of the People’s Republic of China. at of the driving station of the parallel axis cylindrical gear reducer.

● Light weight: When the bearing capacity is the same, the weight of hard gear reducer is 50.60% lower than that of ZQ soft gear reducer.

●Efficiency and energy saving: The overall efficiency of each gear stage is 0.98, while the ZQ type is 0.97.

●Long service life: The average service life of the reducer is not less than ten years, double that of ZQ type. It can save a lot of money and raw materials, and has remarkable economic benefits.

Our Company

HANGZHOU EVER-POWER GROUP, ONE OF THE BIGGEST GEARBOX FACTORY IN CHINA, ELECTROMECHANICAL EQUIPMENT SUPPLY STATION

Our company is located in the city of HangZhou, ZheJiang Province of China.
We handle the products of power transmission, our lines mainly cover series products in speed reducers, gearboxes , associated electricial motors and other power transmission accessories. Based on the versatile functions, our products can be utilized in many fields: machines of waste water trIf the gear reducer had to be painted, the detents must be covered to prevent them from drying and losing their seal. The machine work of the fittings set up in the output shafts need an ISO H7 or h6 margin for the hollow shaft.eatment, dredgers, chemical industry, cranes, metal working mills, conveyors, paper industry, cement industry, cableways and so on.With the excellent quality and reasonable price , our products enjoy a good reputation from customers and the peers all over the world.
Furthermore, the R&D investment are annually increasing for the purpose of better meeting the new demands of our customers and adapting the new tendency of the industry.
Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

Application area

DBY conical cylindrical gear reducer (hereinafter referred to as the reducer) is used for transmission device with input shaft and output shaft arranged vertically. Mainly used in belt conveyors and various transport machinery, but also used in coal, metallurgy, mining, chemical industry, building materials, light industry, oil and other general machinery transmission mechanism.

Packing&Transportion

PACKING AND TRANSPORTION

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets and wooden pallets according to customer needs.

●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.

●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.

●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

FAQ

Q1: Are you a trading company or a manufacturer ?

A: We are a manufacturer in ZheJiang Province, China. Our company owns the ability of manufacturing, processing,designing and R&D. We welcome your visit.

Q2: How we select models and specifications?

A: According to the specific details of the demands from the part of enquiry, we will recommend the products’ models upon synthesizing the factors of field of products usage, power, torque arm and ratio…

Q3: How is your price? Can you offer any discount?

A: Our prices are always competitive. If the customer can place a large order, we surely will allow discount.

Q4: How long should I wait for the feedback after I send the enquiry?

A4: We will reply the enquiries without any delay, 12 hours at most.

Q5: What is your product warranty period?

A: We have the certifications of ISO99001,CE, SGS.

Q6: What industries are your gearboxes being used?

A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment and so on.
